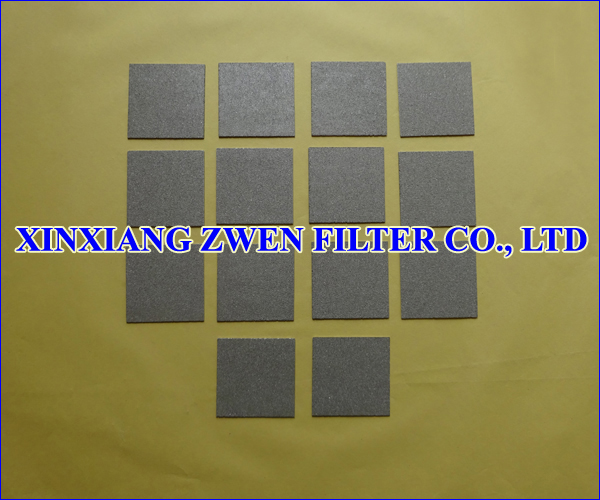

Sintered Powder Filter Sheet
SS Powder Filter Sheet

SS Powder Filter Sheet

SS Powder Filter Sheet Technical Data

1. Raw Material: SS 316L,Titanium

2. Filter Rating: 0.22-100 Microns

3. Operation Temperature: ≤ 816 ℃

4. Length: ≤ 800 mm

5. Width: ≤ 320 mm

6. Thickness: 1 mm,1.5 mm,2 mm,3 mm,5 mm or others


SS Powder Filter Sheet Feature

1. Depth filtration

2. Large dirt holding capacity

3. High mechanical strength

4. Good integrity and rigidity

5. Good permeability

6. Heat resistance

7. Corrosion resistance



Application

1. Filtration

Solvent filters for chromatography systems.

Polymer filters for processing molten plastic materials.

Catalyst recovery filters in petrochemical plants and food and beverage applications.

Gas filters for chemical processing and semiconductor manufacturing applications.

Sensor covers to protect delicate instruments in harsh environments (such as smoke stacks and exhaust pipes).


2. Flow Control Devices, Breathers, and Pressure Equalizers

Small fitting-mounted flow restrictors that replace expensive micro valves and orifice devices used in gas leak detectors in the mining industry or in other analytical equipment.

Vent plugs that allow internal pressure of systems to come to equilibrium with outer atmospheres such as in space vehicles, automotive (truck and train) brake systems, and instrument cabinets used in harsh environments.

Vacuum delay valves in automotive carburetors.

Pump priming vents for pharmaceutical micropumps.


3. Flame Arrestors

Gas detectors for mining operations.

Oxygen sensor covers in turbine and jet engine inlet cones.

Protective covers for electronic process sensors.


4. Spargers

Carbonation of beverages.

Addition of CO2 to neutralize acidic waste stream in paper processing.

Aeration of sewage effluent to increase biological activity.

Addition of air into fermentation processes such as beer brewing or fuel ethanol production.

Introducing hydrogen into refinery cracking operations.

Increasing the oxygen content in fish farming plants.

Adding ozone to a water treatment stream.

Introducing nitrogen into food products such as beverages and cooking oils to remove oxygen and extend shelf life.


5. Rollers and Applicators

Finish coatings for printing papers.

Solvent-based adhesive coating of tapes.

Ink jet printer plates.

Air rollers for handling sensitive films with no direct surface-to-surface contact.


6. Fluidizers

Fluidizing cones on silo outlets to aid dry process chemical flow into a reactor.

Moving dry goods, such as cereals, through process tubing.

Loosening of bulk dry chemicals after transport prior to dumping.


7. Gauge Snubbers


8. Silencers

Vehicle or train air brakes.

Gas-activated process valves in chemical plants.

Air and vacuum pump discharge mufflers.


About Us

XINXIANG ZWEN FILTER CO.,LTD is a professional manufacture factory of producing pleated metal filter cartridge (pleated wire mesh filter cartridge, pleated sintered fiber felt filter cartridge), sintered metal filter basket, sintered metal filter cartridge (sintered fiber felt filter cartridge, sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter sheet (sintered fiber felt, sintered mesh, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).


With high-end sintering equipment, welding equipment and skilled workers, we passed ISO 9001:2008 quality management system and SGS audit test.


Our products are used in petroleum industry, chemical industry, aerospace industry, pharmaceutical industry, food industry, and beverage industry.


Our main markets are European market and North American market.
