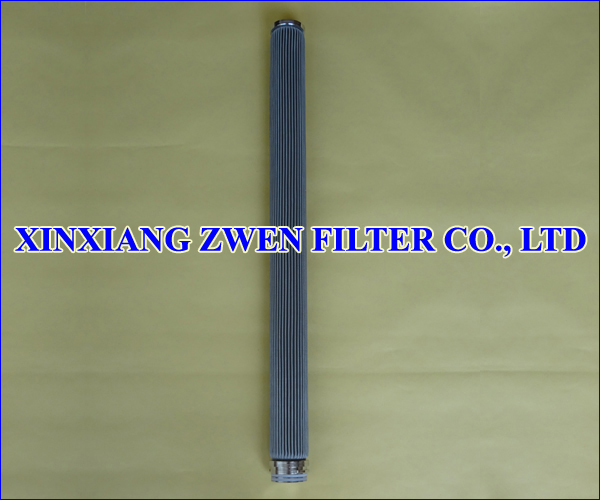

Pleated Wire Mesh Filter Cartridge
Pleated Mesh Filter Cartridge

Pleated Mesh Filter Cartridge

Pleated Mesh Filter Cartridge Feature

1. Pleated mesh filter cartridge has large filter area

2. Pleated mesh filter cartridge is surface filtration

3. Pleated mesh filter cartridge is good for backwash because the pore passage of wire mesh aperture is very smooth

4. Wire mesh won’t shed in filtration process

5. High filter rating accuracy

6. High temperature resistance

7. High corrosion resistance

8. High flow rate

9. Washable and Cleanable

10. Reusable

11. Long service life



Pleated Mesh Filter Cartridge Technical Parameter

Raw Material: SS 316L

Filter Rating: 1-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others

Length: 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization



Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
