Sintered Wire Mesh

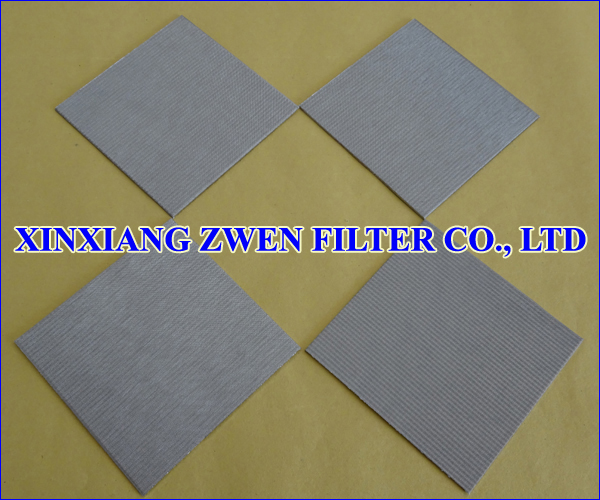

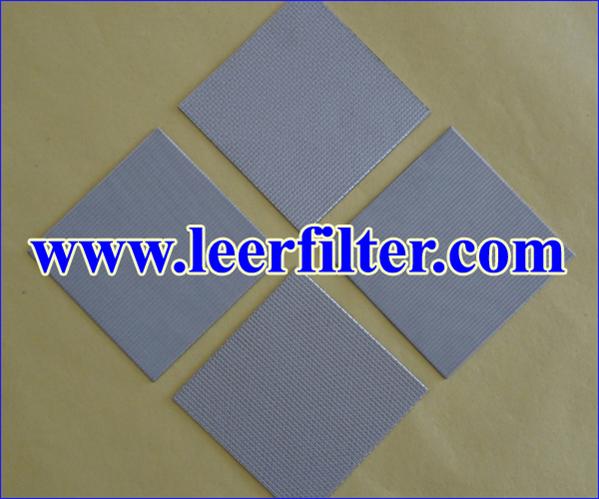

Sintered Metal Mesh

Sintered Metal Mesh

Sintered Metal Mesh Technical Data

Raw Material

SS 316L,SS 304

Filter Rating

0.5~300 Microns

Number of Layers

2~20 Layers

Working Temperature

≤ 816 ℃


≤ 1200 mm


≤ 1000 mm

Regular Size

500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm


0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others


Sintered Metal Mesh Features

1. It is a new backwash filter media

2. It is composed of multilayer wire mesh

3. It is sintered in a high temperature vacuum furnace

4. Washable and reusable

5. Uniform pore size distribution

6. Good mechanical strength

7. Easy to be fabricated, welded and assembled
