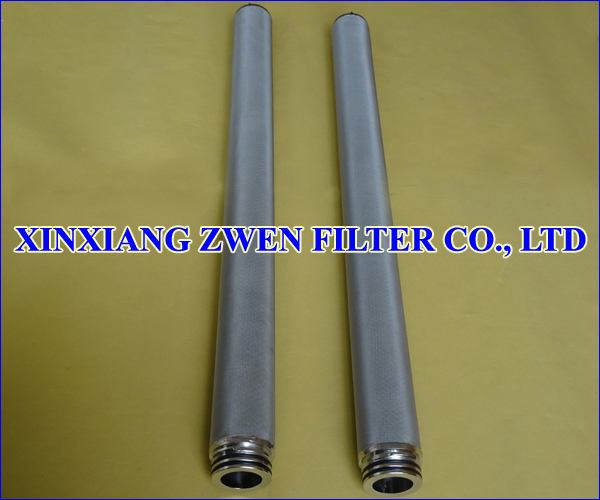

Stainless Steel Filter Cartridge
Stainless Steel Filter Cartridge

Stainless Steel Filter Cartridge

Stainless Steel Filter Cartridge Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Wire Mesh

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 40 mm, 90 mm, 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Stainless Steel Filter Cartridge Feature

1. Stainless steel filter cartridge is surface filtration

2. Stainless steel filter cartridge is good for backwash because the pore passage of zwen sintered wire mesh aperture is very smooth

3. Stainless steel filter cartridge has uniform pore size distribution

4. Wire mesh will not shed in the filtration process

5. High compression strength

6. High mechanical strength

7. High rigidity

8. High abrasion resistance

9. Good durability against most liquids, gases and aggressive steam

10. High temperature resistance

11. High filter rating accuracy

12. High filter efficiency

13. Corrosion resistance

14. Washable and Cleanable

15. Reusable

16. Long service life



Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD  produces pleated metal filter element (pleated sintered fiber felt filterelement, pleated wire mesh filter element, ss pleated filter element, stainless steel pleated filter element), stainless steel filter cartridge, stainless steel filter element, sintered porous filter cartridge, sintered porous filter element, sintered porous filter disc, sintered porous filter disk, sintered porous filter plate, sintered porous filter sheet, and sintered porous filter tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENTS, MAHLE.
