Sintered Wire Mesh

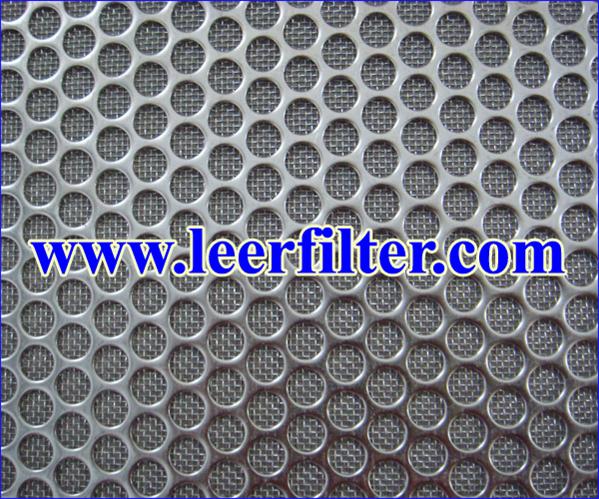

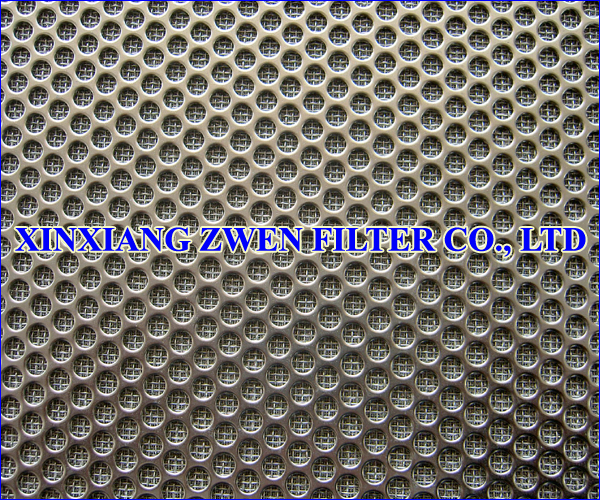

Perforated Plate Sintered Wire Mesh

Perforated Plate Sintered Wire Mesh

Perforated Plate Sintered Wire Mesh Technical Data

Raw Material

SS 316L,SS 304

Filter Rating

0.5~300 Microns

Number of Layers

2~20 Layers

Working Temperature

≤ 816 ℃

Length

≤ 1200 mm

Width

≤ 1000 mm

Regular Size

500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm

Thickness

0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others



Perforated Plate Sintered Wire Mesh Features

1. It is a new backwash filter media

2. It is composed of one layer perforated plate and multilayer wire mesh

3. It is sintered in a high temperature vacuum furnace

4. Its mechanical strength is very high because of one layer perforated plate

5. Washable and reusable

6. Uniform pore size distribution

7. Good mechanical strength

8. Easy to be fabricated, welded and assembled
