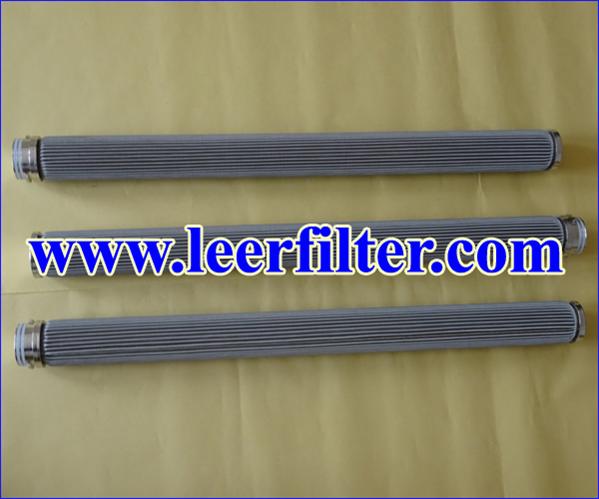

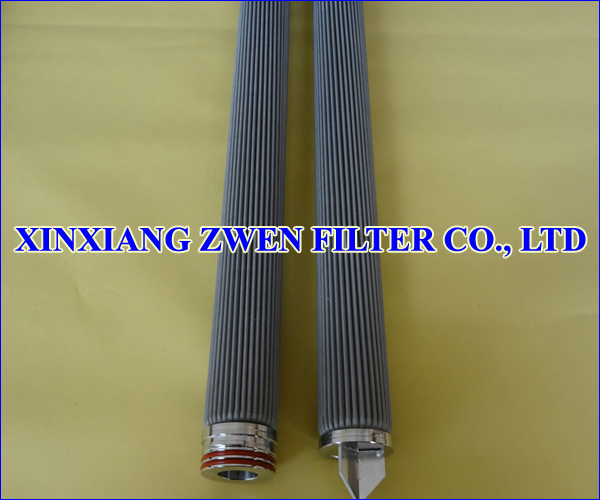

Pleated Wire Mesh Filter Element
Pleated Wire Mesh Filter Element Feature
1. Pleated wire mesh filter element has large filter area
2. Pleated wire mesh filter element is surface filtration
3. Pleated wire mesh filter element is good for backwash because the pore passage of wire mesh aperture is very smooth
4. Wire mesh won’t shed in filtration process.
5. High filter rating accuracy
6. High temperature resistance
7. High corrosion resistance
8. High flow rate
9. Washable and Cleanable
11. Long service life
Pleated Wire Mesh Filter Element Technical Parameter
Raw Material: SS 304, SS 316L
Filter Rating: 1-300 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others
Length: 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
5. Thread (NPT,BSP,G,M,R)
7. Special customization
Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
XINXIANG ZWEN FILTER CO.,LTD is a professional manufacture factory of producing pleated metal filter cartridge (pleated wire mesh filter cartridge, pleated sintered fiber felt filter cartridge), sintered metal filter basket, sintered metal filter cartridge (sintered fiber felt filter cartridge, sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter sheet (sintered fiber felt, sintered mesh, sintered powder filter sheet), sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).
With high-end sintering equipment, welding equipment and skilled workers, we passed ISO 9001:2008 quality management system and SGS audit test.
Our products are used in petroleum industry, chemical industry, aerospace industry, pharmaceutical industry, food industry, and beverage industry.
Our main markets are European market and North American market.
