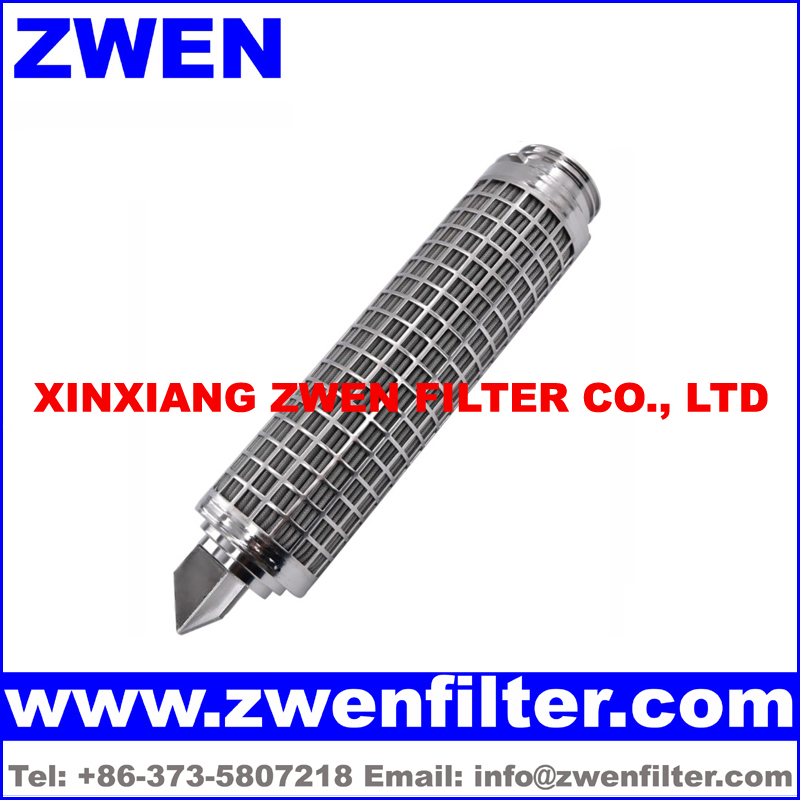

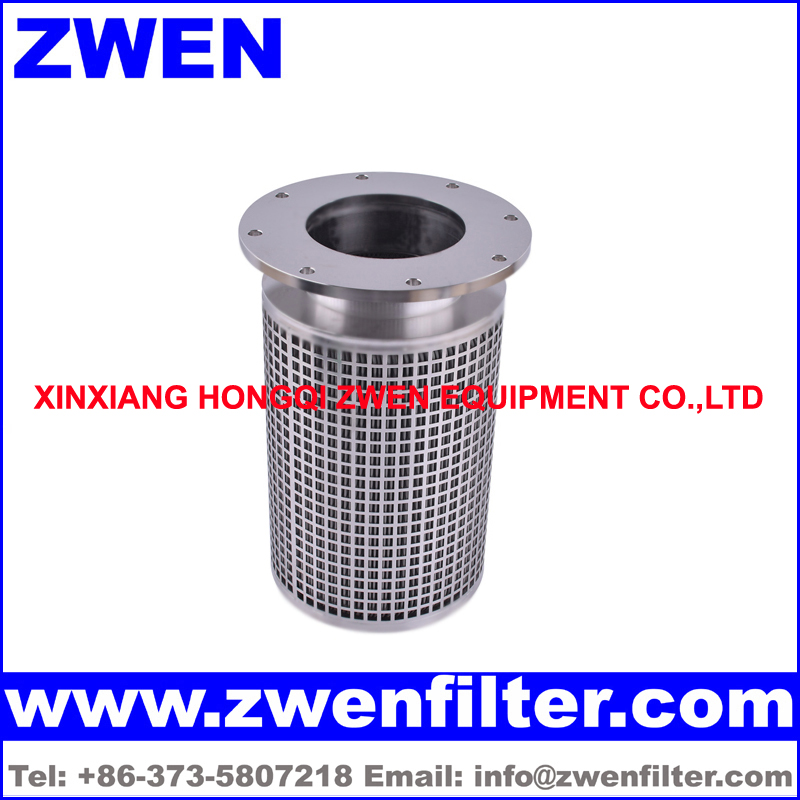

Perforated Sheet Pleated Stainless Steel Filter Element

Source:http://www.leerfilter.com/news/1028.html    Time:2022-07-12    Hits:52

ZWEN------Backwash_Sintered_Filter_Leader



Perforated Sheet Pleated Stainless Steel Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 Micron ~ 850 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Protective Sleeve: Perforated Sheet

Outside Diameter: 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm,

                             110 mm, 130 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm or others

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Perforated Sheet Pleated Stainless Steel Filter Element Feature

1. Perforated sheet pleated stainless steel filter element has large filter area

2. Perforated sheet pleated stainless steel filter element has high flow rate

3. Perforated sheet pleated stainless steel filter element is good for backwash

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Long service life



Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces perforated sheet pleated candle filter element, perforated sheet pleated metal filter element, perforated sheet pleated sintered fibe felt filter element, perforated sheet pleated ss filter element, perforated sheet pleated stainless steel filter element, perforated sheet pleated wire cloth filter element, and perforated sheet pleated wire mesh filter element.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
