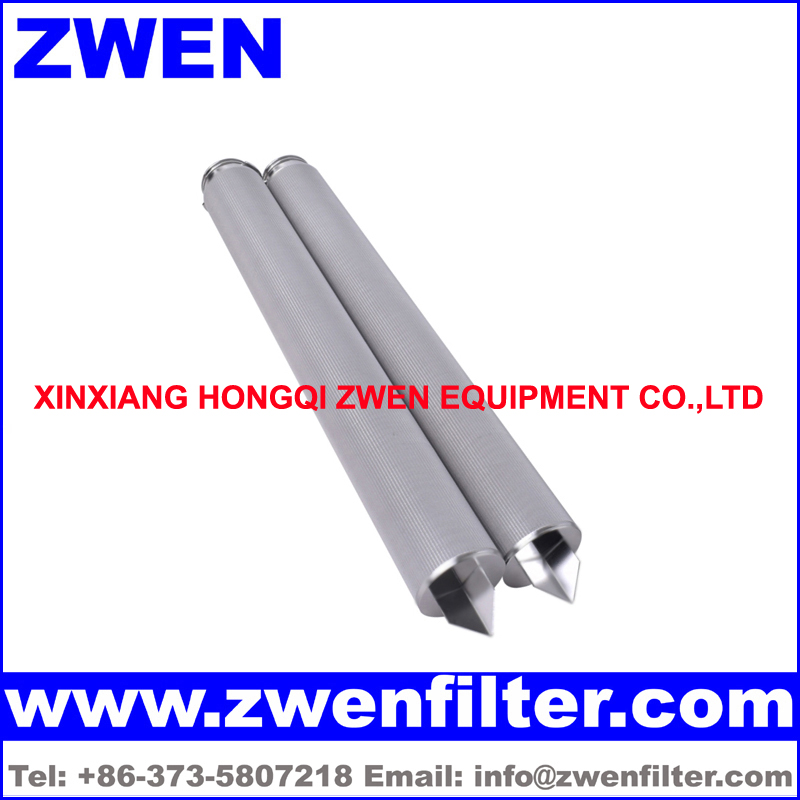

Metal Sintered Wire Cloth Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Wire Cloth
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 5 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm,
65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization
Metal Sintered Wire Cloth Filter Element Feature
1. Metal sintered wire cloth filter element has uniform pore size distribution
2. Metal sintered wire cloth filter element is good for backwash
3. High mechanical strength
4. High temperature resistance
5. High filter efficiency
6. High corrosion resistance
7. Long service life
Application
Polymers filtration, high temperature liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, water filtration, beverages filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
About Us
XINXIANG ZWEN FILTER CO.,LTD produces sintered wire cloth filter candle, sintered wire cloth filter cartridge, sintered wire cloth filter disc, sintered wire cloth filter disk, sintered wire cloth filter element, sintered wire cloth filter pipe, sintered wire cloth filter plate, sintered wire cloth filter rod, sintered wire cloth filter sheet, and sintered wire cloth filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
