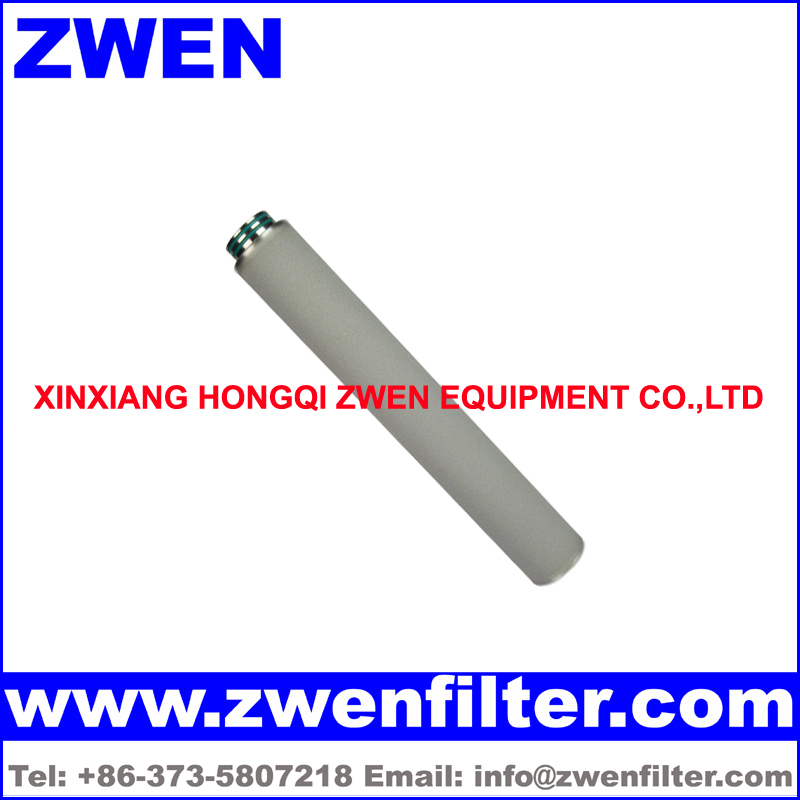

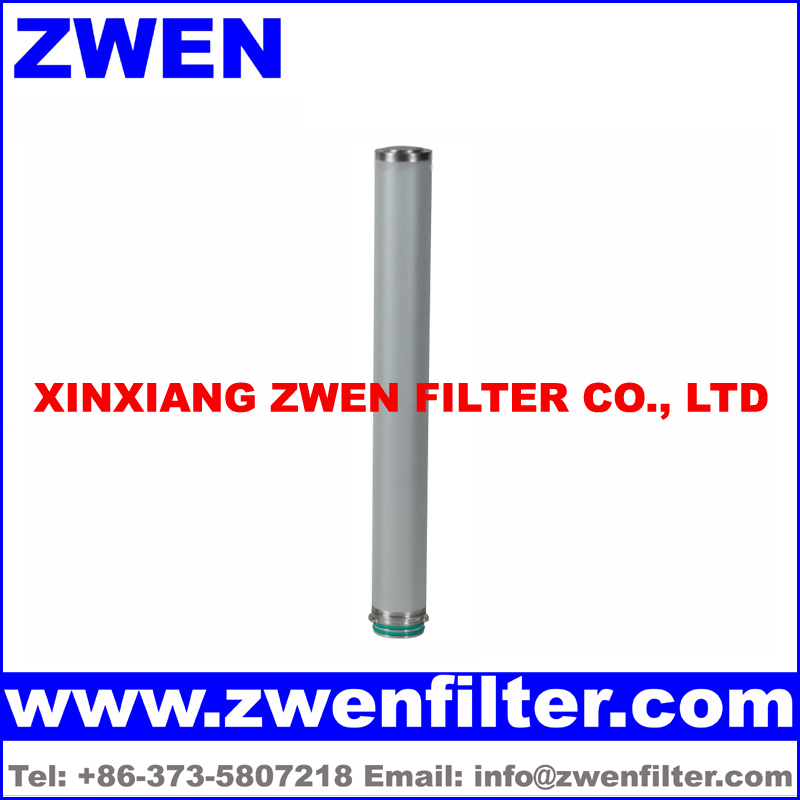

Ti Porous Filter Element

Source:http://www.leerfilter.com/news/871.html    Time:2022-03-21    Hits:75

1

Ti Porous Filter Element Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  300

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization




Ti Porous Filter Element Feature

1. Ti porous filter element is made from ti powder particle

2. Ti porous filter element is sintered in a high temperature vacuum furnace

3. Ti porous filter element is depth filtration

4. Ti porous filter element is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

5. Ti porous filter element is backwash

6. High corrosion resistance

7. High porosity

8. High mechanical strength

9. High filter efficiency

10. High dirt holding capacity

11. High flow rate at low differential pressure

12. High temperature resistance

13. Washable and Cleanable

14. Reusable

15. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
