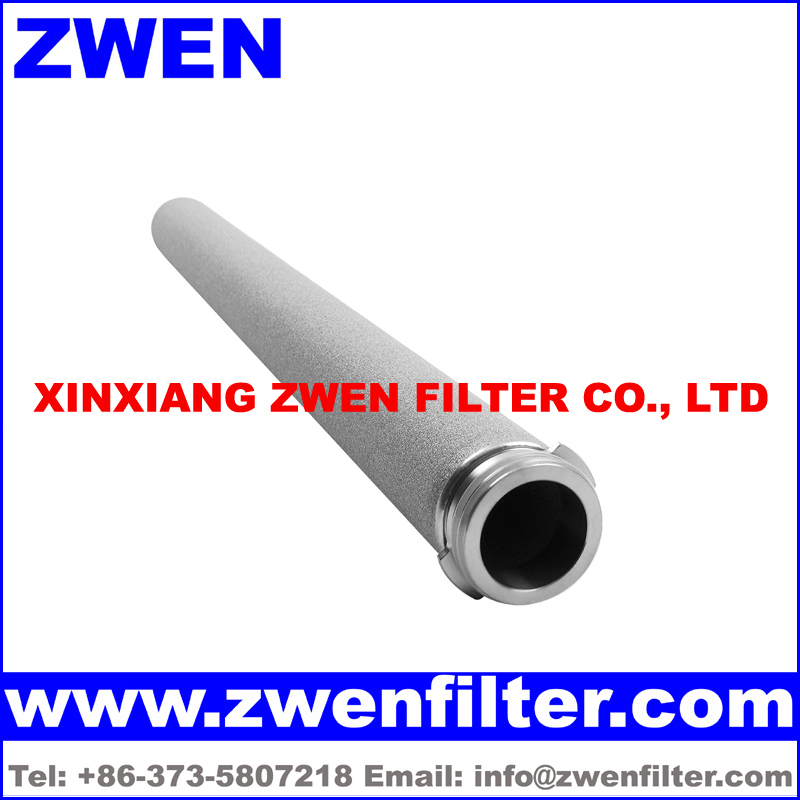

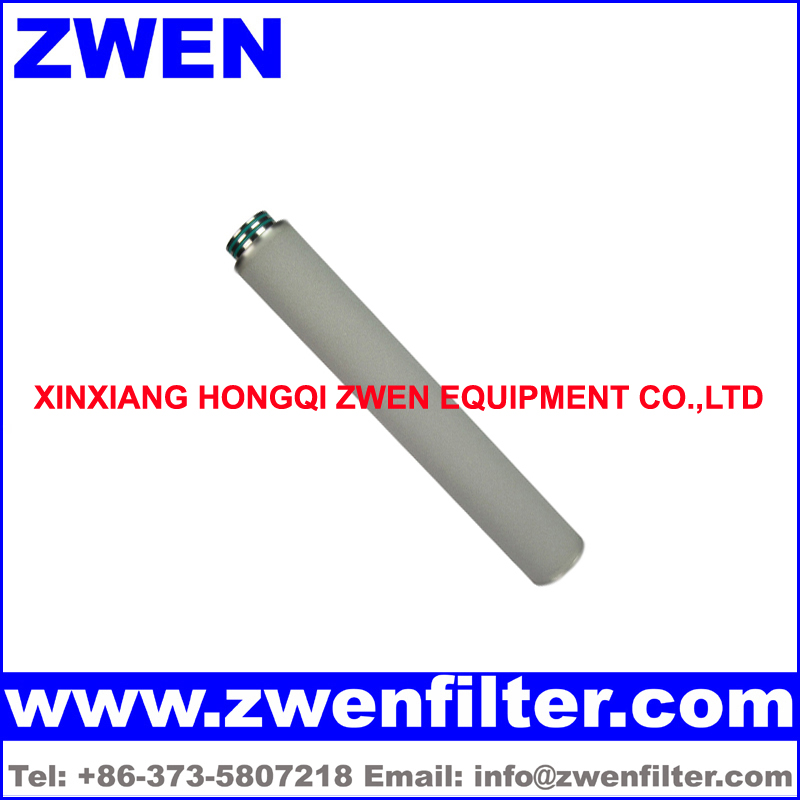

316L Sintered Porous Filter Cartridge Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 5''(127), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor: DOE

                                           Code 2 (226+Flat End)

                                           Code 3 (222+Flat End)

                                           Code 7 (226+Fin End)

                                           Code 8 (222+Fin End)

                                           Thread (NPT,BSP,G,M,R)

                                           Flange

                                           Special customization

316L Sintered Porous Filter Cartridge Feature

316L sintered porous filter cartridge has high porosity

316L sintered porous filter cartridge is good for backwash

316L sintered porous filter cartridge has high mechanical strength

High filter efficiency

High dirt holding capacity

High temperature resistance

High corrosion resistance

Long service life

Application

Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

Catalysts powders recovery

Precoat support filtration

ZWEN Quality Guarantee

We can provide raw material test report

We can provide filter efficiency test report

We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
