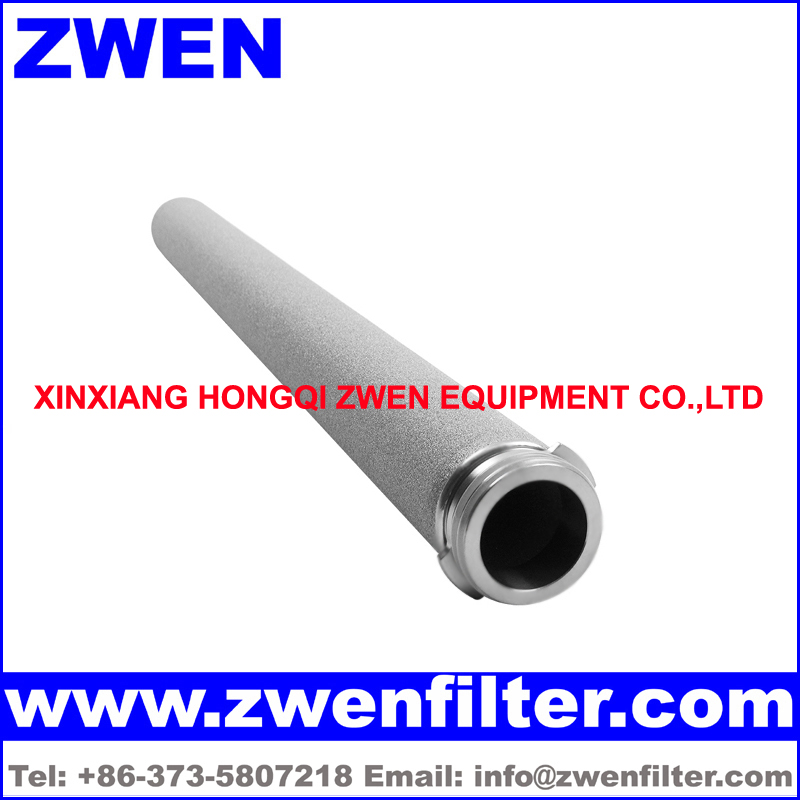

Ti Sintered Powder Cartridge Technical Data
Raw Material: Ti
Filter Rating Range: 0.22 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 300 ℃
Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,
60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm
Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
Connector/Fitting/Adaptor:
1. DOE
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
7. Flange
8. Special customization
Ti Sintered Powder Cartridge Feature
1. Ti sintered powder cartridge is biocompatible
2. Ti sintered powder cartridge has high porosity
3. Ti sintered powder cartridge is good for backwash
4. Ti sintered powder cartridge has high mechanical strength
5. High filter efficiency
6. High dirt holding capacity
7. High temperature resistance
8. High corrosion resistance
9. Long service life
Application
1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)
4. Catalysts powders recovery
5. Precoat support filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
About Us
XINXIANG ZWEN FILTER CO.,LTD produces ti sintered powder candle, ti sintered powder cartridge, ti sintered powder disc, ti sintered powder disk, ti sintered powder element, ti sintered powder pipe, ti sintered powder plate, ti sintered powder rod, ti sintered powder sheet, and ti sintered powder tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
