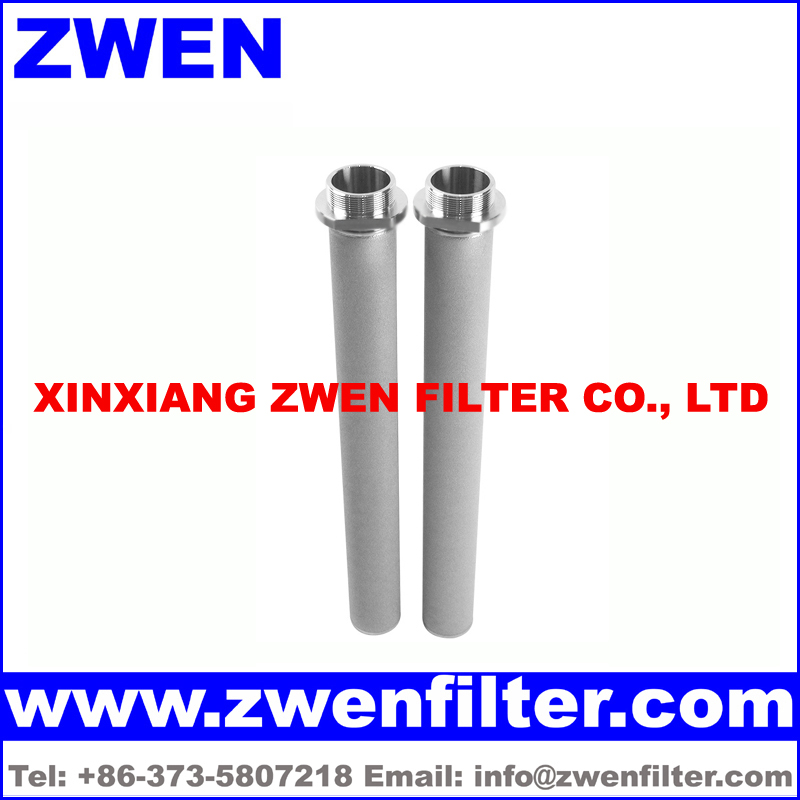

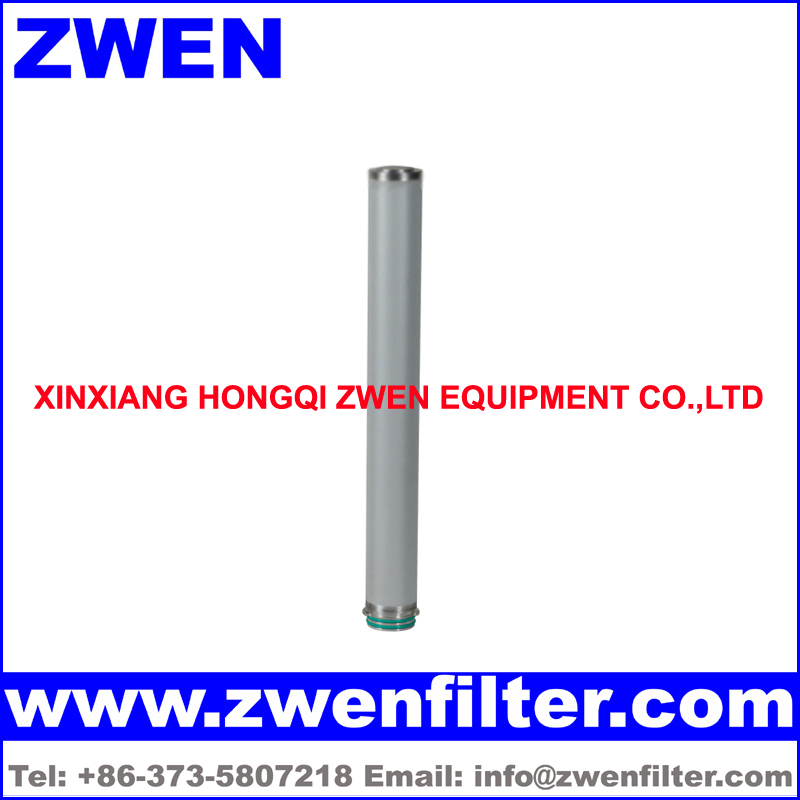

Stainless Steel Sintered Porous Filter

Source:http://www.leerfilter.com/news/444.html    Time:2019-12-26    Hits:17

1

Stainless Steel Sintered Porous Filter Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,

                              100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization




Stainless Steel Sintered Porous Filter Feature

1. Stainless steel sintered porous filter is surface filtration

2. Stainless steel sintered porous filter is good for backwash

3. Stainless steel sintered porous filter has uniform pore size distribution

4. High mechanical strength

5. High temperature resistance

6. High filter efficiency

7. High corrosion resistance

8. Washable and Cleanable

9. Reusable

10. Long service life


Application

Polymers filtration, high temperature liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, water filtration, beverages filtration


ZWEN Quality Guarantee

1. we can provide raw material test report

2. we can provide filter efficiency test report

3. we will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces stainless steel sintered mesh filter, stainless steel sintered metal filter, stainless steel sintered porous filter, stainless steel sintered powder filter, and stainless steel sintered wire cloth filter.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
