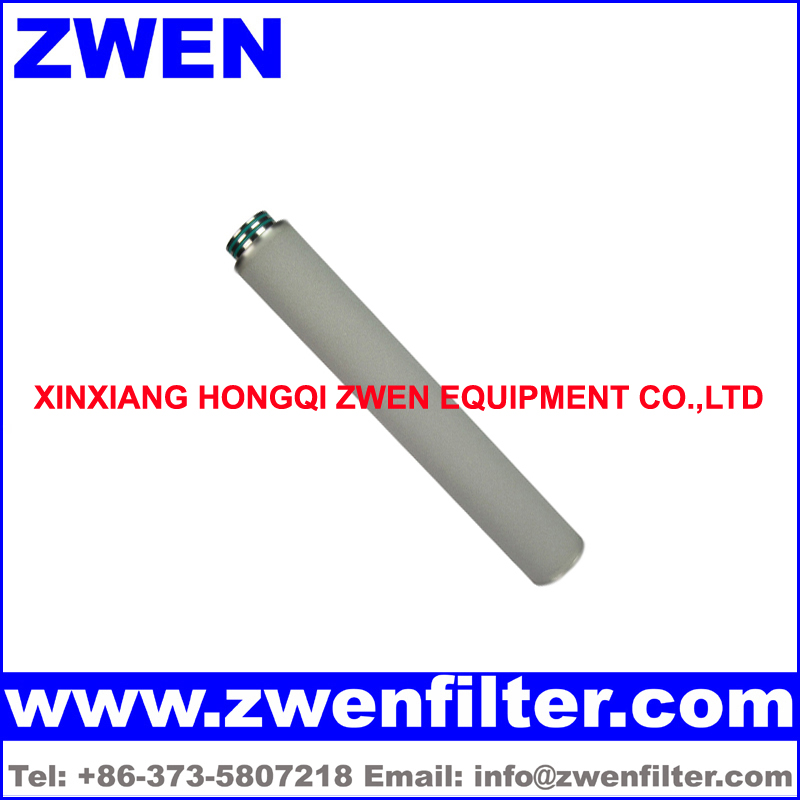

Ti Sintered Porous Rod

Source:http://www.leerfilter.com/news/885.html    Time:2022-04-06    Hits:27

1

Ti Sintered Porous Rod Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  300

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization




Ti Sintered Porous Rod Feature

1. Ti sintered porous rod is made from ti powder particle

2. Ti sintered porous rod is sintered in a high temperature vacuum furnace

3. Ti sintered porous rod is depth filtration

4. Ti sintered porous rod is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

5. Ti sintered porous rod is backwash

6. High corrosion resistance

7. High porosity

8. High mechanical strength

9. High filter efficiency

10. High dirt holding capacity

11. High flow rate at low differential pressure

12. High temperature resistance

13. Washable and Cleanable

14. Reusable

15. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces ti sintered fritti sintered porous candle, ti sintered porous cartridge, ti sintered porous disc, ti sintered porous disk, ti sintered porous element, ti sintered porous pipe, ti sintered porous plate, ti sintered porous rod, ti sintered porous sheet, and ti sintered porous tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
