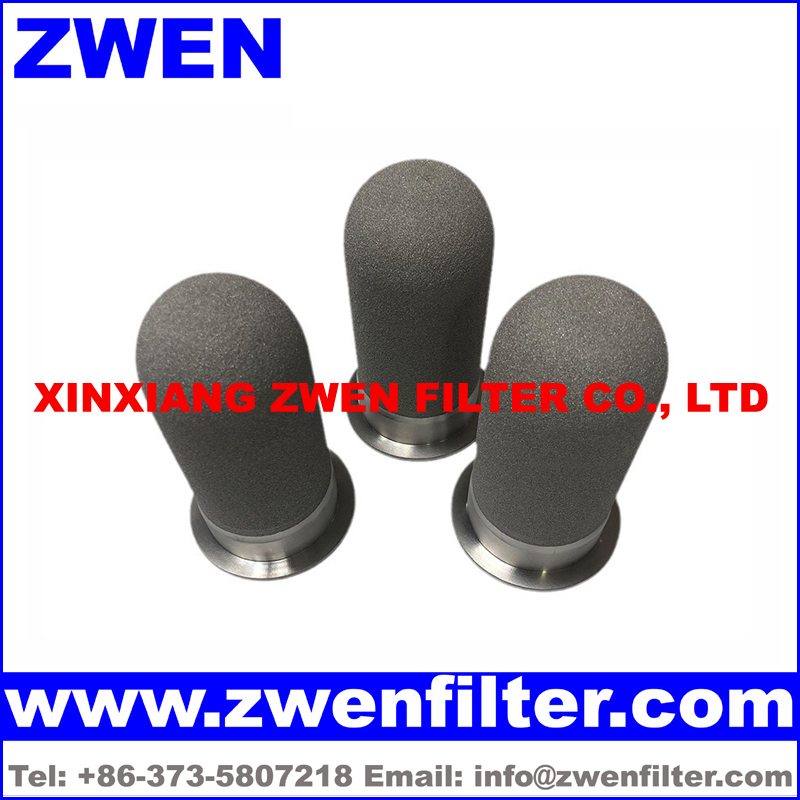

Ti Sintered Filter Candle

Source:http://www.leerfilter.com/news/888.html    Time:2022-04-09    Hits:25

1

Ti Sintered Filter Candle Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  300

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization




Ti Sintered Filter Candle Feature

1. Ti sintered filter candle is made from ti powder particle

2. Ti sintered filter candle is sintered in a high temperature vacuum furnace

3. Ti sintered filter candle is depth filtration

4. Ti sintered filter candle is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal

5. Ti sintered filter candle is backwash

6. High corrosion resistance

7. High porosity

8. High mechanical strength

9. High filter efficiency

10. High dirt holding capacity

11. High flow rate at low differential pressure

12. High temperature resistance

13. Washable and Cleanable

14. Reusable

15. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces ti fritti sintered filter candle, ti sintered filter cartridge, ti sintered filter disc, ti sintered filter disk, ti sintered filter element, ti sintered filter pipe, ti sintered filter plate, ti sintered filter rod, ti sintered filter sheet, and ti sintered filter tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
